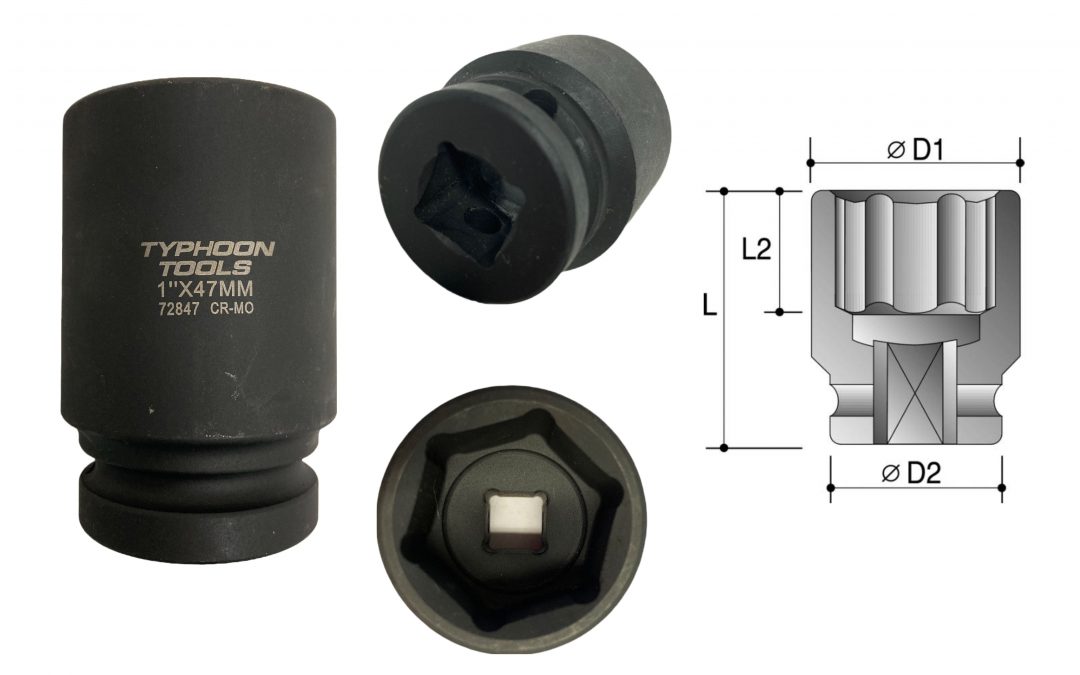

1” DR Deep Impact Sockets, Metric & AF

PART NO. SIZE
(mm)		 D1
(mm)		 D2
(mm)		 T
(mm)		 L
(mm)		 TORQUE RATE N.M. RET RING
72819 19 35 54 25 90 900 TY10008CG
72820 20 36 54 25 90 900 TY10008CG
72821 21 37.5 54 25 90 900 TY10008CG
72822 22 39 54 25 90 1240 TY10008CG
72823 23 40 54 25 90 1240 TY10008CG
72824 24 41.5 54 25 90 1470 TY10008CG
72825 25 42.5 54 25 90 1470 TY10008CG
72826 26 44 54 25 90 1470 TY10008CG
72827 27 45 54 25 90 1695 TY10008CG
72828 28 46.5 54 25 90 1955 TY10008CG
72829 29 47.5 54 25 90 1955 TY10008CG
72830 30 49 54 25 90 2225 TY10008CG
72831 31 50 54 25 90 2225 TY10008CG
72832 32 51.5 54 25 90 2490 TY10008CG
72833 33 52.5 54 25 90 2490 TY10008CG
72834 34 54 54 25 90 2490 TY10008CG
72835 35 55 54 25 90 2490 TY10008CG
72836 36 56.5 54 25 90 2712 TY10008CG
72837 37 58 54 25 90 2712 TY10008CG
72838 38 59 54 25 90 2712 TY10008CG
72839 39 60 54 25 90 2712 TY10008CG
72840 40 61 54 25 90 2712 TY10008CG
72841 41 62.5 54 25 90 2940 TY10008CG
72842 42 64 54 25 90 2940 TY10008CG
72843 43 65 54 25 90 2940 TY10008CG
72844 44 66 60.3 30 100 2940 TY10008CG
72845 45 67.5 60.3 30 100 2940 TY10008CG
72846 46 69 60.3 30 100 3390 TY10008CG
72847 47 70 60.3 30 100 3390 TY10008CG
72848 48 71.5 60.3 30 100 3390 TY10008CG
72849 49 73 60.3 30 100 3390 TY10008CG
72850 50 74 60.3 30 100 3615 TY10008CG
72851 51 75 60.3 30 100 3615 TY10010CG
72852 52 76.5 60.3 30 100 3615 TY10010CG
72853 53 78 60.3 35 100 3615 TY10010CG
72854 54 79 60.3 35 108 3615 TY10010CG
72855 55 80 60.3 35 108 3615 TY10010CG
72856 56 81.5 60.3 35 108 3615 TY10010CG
72857 57 82.5 60.3 35 108 3615 TY10010CG
72858 58 84 60.3 35 108 3615 TY10010CG
72859 59 85 60.3 35 108 3615 TY10010CG
72860 60 86.5 60.3 35 108 3615 TY10010CG
72862 62 88 60.3 35 120 3615 TY10010CG
72863 63 90 60.3 35 120 3615 TY10010CG
72865 65 92.5 60.3 35 120 3615 TY10010CG
72867 67 95 60.3 35 120 3615 TY10010CG
72868 68 96.5 60.3 35 120 3615 TY10010CG
72869 69 98 60.3 35 120 3615 TY10010CG
72870 70 99 60.3 35 125 3615 TY10010CG
72871 71 100 60.3 35 125 3615 TY10010CG
72875 75 105 60.3 35 125 3615 TY10010CG
72877 77 108 60.3 35 125 3615 TY10021CG
72880 80 111.5 60.3 35 125 3615 TY10021CG
72885 85 115 86 35 135 3615 TY10021CG
72890 90 124 86 35 135 3615 TY10021CG
72895 95 130 86 35 140 3615 TY10021CG
72900 100         3615 TY10021CG
72905 105         3615 TY10021CG
72910 110         3615 TY10021CG
72915 115         3615 TY10021CG
72916 120         3615 TY10021CG


PART NO. SIZE
(inches)		 D1
(mm)		 D2
(mm)		 T
(mm)		 L
(mm)		 TORQUE RATE N.M. RET RING
72919 11/16 30 54 25 90 904 TY10008CG
72920 3/4 35 54 25 90 904 TY10008CG
72921 13/16 37 54 25 90 1130 TY10008CG
72922 7/8 39 54 25 90 1243 TY10008CG
72923 15/16 40.5 54 25 90 1469 TY10008CG
72924 1 42.5 54 25 90 1582 TY10008CG
72925 1-1/16 44.5 54 25 90 1695 TY10008CG
72926 1-1/8 46 54 25 90 1924 TY10008CG
72927 1-3/16 49 54 25 90 2226 TY10008CG
72928 1-1/4 51.5 54 25 90 2486 TY10008CG
72929 1-5/16 54 54 25 90 2486 TY10008CG
72930 1-3/8 55 54 25 90 2486 TY10008CG
72931 1-7/16 56.5 54 25 90 2486 TY10008CG
72932 1-1/2 59 54 25 90 2486 TY10008CG
72933 1-9/16 61 54 25 90 2938 TY10008CG
72934 1-5/8 62.5 54 25 90 2938 TY10008CG
72935 1-11/16 65 54 25 90 3163 TY10008CG
72936 1-3/4 67.5 60.3 31 100 3163 TY10008CG
72937 1-13/16 69 60.3 31 100 3389 TY10008CG
72938 1-7/8 70 60.3 31 100 3389 TY10010CG
72939 1-15/16 72.5 60.3 31 100 3389 TY10010CG
72940 2 74 60.3 31 100 3616 TY10010CG
72941 2-1/16 76.5 60.3 31 100 3616 TY10010CG
72942 2-1/8 79 60.3 31 108 3616 TY10010CG
72943 2-3/16 80 60.3 31 108 3616 TY10010CG
72944 2-1/4 82.5 60.3 36 108 3616 TY10010CG
72945 2-5/16 84 60.3 36 108 3616 TY10010CG
72946 2-3/8 86.5 60.3 36 108 3616 TY10010CG
72947 2-7/16 89 60.3 36 108 3616 TY10010CG
72948 2-1/2 91.5 60.3 36 120 3616 TY10010CG
72949 2-9/16 92.5 60.3 36 120 3616 TY10010CG
72950 2-5/8 95 60.3 44 120 3616 TY10010CG
72951 2-11/16 96.5 60.3 44 120 3616 TY10010CG
72952 2-3/4 99 60.3 44 125 3616 TY10010CG
72953 2-13/16 101.5 60.3 44 125 3616 TY10010CG
72954 2-7/8 102.5 60.3 44 125 3616 TY10010CG
72955 2-15/16 104.5 60.3 44 125 3616 TY10010CG
72956 3 106.5 60.3 44 125 3616 TY10010CG
72957 3-1/16 109 60.3 44 125 3616 TY10010CG
72958 3-1/8 111.5 60.3 44 125 3616 TY10010CG
72959 3-1/4 115 86 44 135 3616 TY10021CG
72960 3-3/8 119 86 56 135 3616 TY10021CG
72961 3-1/2 124 86 56 135 3616 TY10021CG
72962 3-5/8 127 86 56 140 3616 TY10021CG
72963 3-3/4 130 86 56 140 3616 TY10021CG
72964 3-7/8 136 95 56 140 3616
72965 4 140 95 56 155 3616
72966 4-1/8 143 95 61 155 3616
72967 4-1/4 146 95 61 155 3616
72968 4-3/8 149 95 61 155 3616
72969 4-1/2 152 95 61 155 3616
